VectorPath 815 Accelerator
The VectorPath® 815 is purpose-built to deliver exceptional performance for advanced workloads in AI and machine learning, high-speed networking, data acceleration, and compute-intensive applications. Powered by the Speedster® 7t1500 FPGA, the VectorPath 815 provides ultra-high bandwidth and low latency, featuring two QSFP-DD interfaces that support up to 16 × 100GbE connections using 112G PAM4 transceivers.
Key Features
- Speedster 7t1500 FPGA
- Data Interfaces
- PCIe Gen5 ×16 host interface providing up to 32 GT/s data transfer
- Twin QSFP-DD interfaces supporting up to 1.6 Tbps aggregate bandwidth (front panel)
- Memory
- 32 GB of GDDR6 memory with up to 4 Tbps total bandwidth for high-speed data movement
- 16 GB of DDR4-3200 for additional memory flexibility
- Clocking
- Advanced clocking and synchronization with support for IEEE-1588 and SyncE
- One pulse-per-second (PPS - front panel)
- Power and Cooling
- Passive dual-slot cooling for high-efficiency thermal performance
- Dimensions
- 111.15 mm × 266.70 mm (height × length)
- Double-wide card

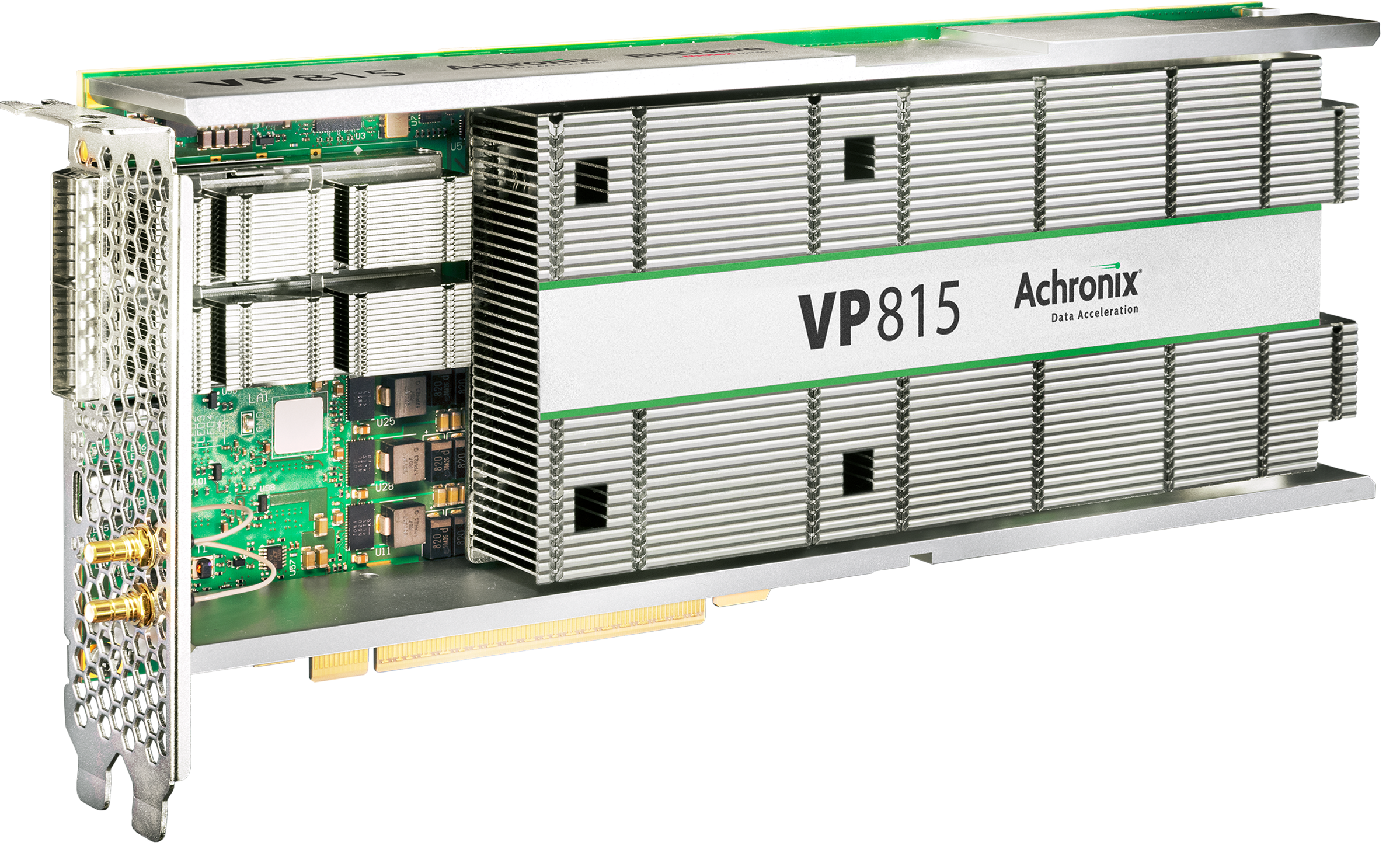

VectorPath 815 Accelerator Card
Applications
| Compute (AI) | Networking | Storage | Data Acquisition/Processing |
|---|---|---|---|
Designed to address demanding compute-intensive applications:
| Dual QSFP-DD ports cater to wide range of high-speed network applications:
| NVMe access for data recorder and data processing applications:
| Optimize for your specific application requirements:
|
Getting Started
Achronix ACE Tool Suite with support for the Speedster7t FPGA is available today. For customers who have already registered on support.achronix.com, learn how you can download the ACE design tools.
Experience STT and LLM models running on VP815 today by requesting access to the Achronix AI Console here or contact sales@achronix.com.
